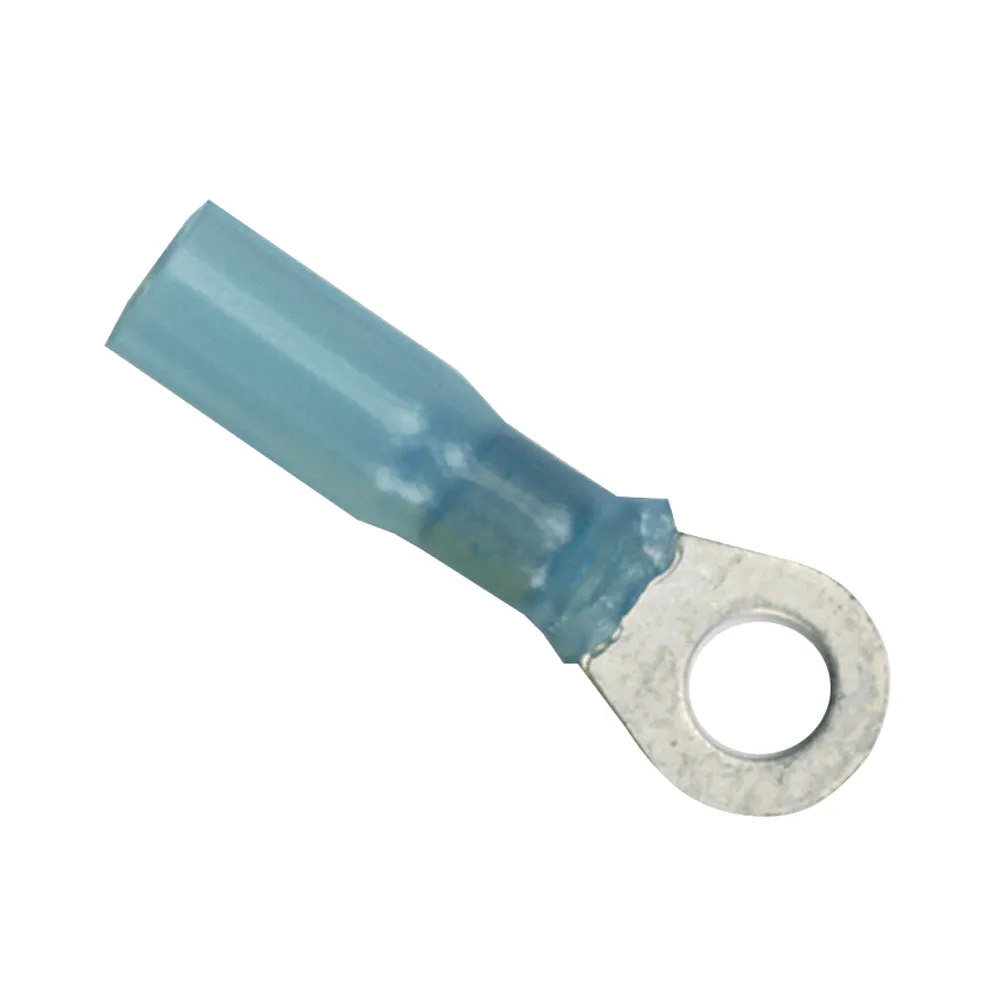

Ancor 16-14 Gauge – 5/16 Heat Shrink Ring Terminal – 25-Pack

16-14 Gauge – 5/16′ Heat Shrink Ring Terminal – 25-Pack

Wire Range:16-14
Screw Size:5/16′
Quantity: 25

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
• Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
• UL Listed and CSA Recognized
• Highest shrink ratio – shrinks to 1/3 original size
• Shrinks at 257° F/125° C
• Operating temperature range 40° C to 110° C
• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
• Shrinks to form a water tight seal and the ultimate vibration and strain relief
• Tinned for corrosion resistance
• Pure copper for maximum current flow
• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

– cis2:mm9lnphk –

Specifications:

• Gauge: 16-14 AWG
• Type: Ring Terminals
• Post Size: 5/16′
• Package Qty: 25
• Heat Shrink: Yes
• Box Dimensions: 1’H x 4’W x 4’L WT: 0.2 lbs
• UPC: 091887313161
