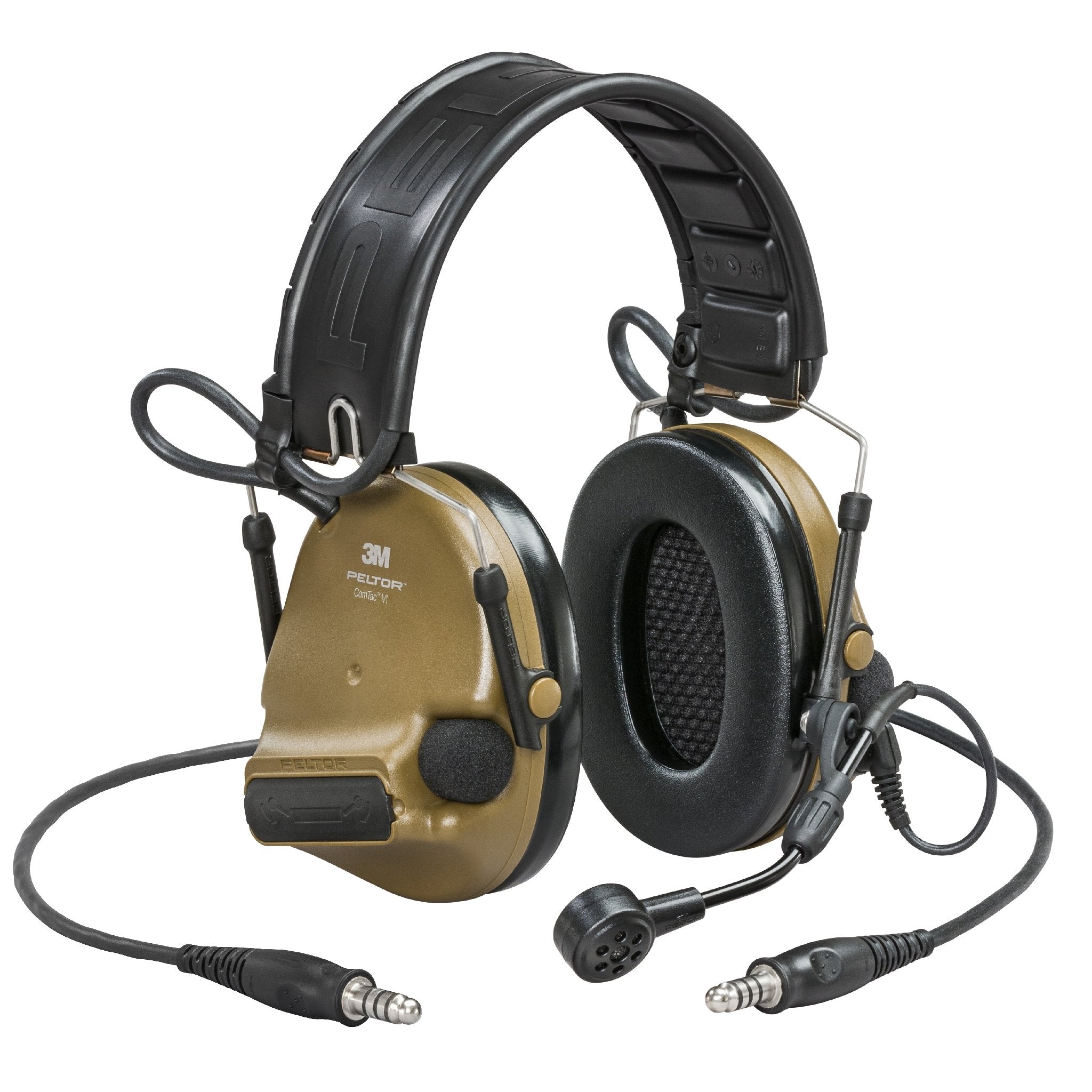

3M™ PELTOR™ ComTac™ VI

The 3M PELTOR ComTac VI is a tactical communication headset designed for use in law enforcement and military operations. They achieve audio overmatch by leveraging several novel to market technologies.

The NIB function, or “Natural Interaction Behavior,” enables easy communication with other ComTac VI headsets in proximity. When the NIB function is on, team members within a 10 meter radius will be automatically connected for full duplex communication. The headset also includes a VOX mode, which allows for hands-free communication in loud environments (above 80db). Alternatively, the PTT mode can be used for manual control of voice transmit. This is accomplished using a low power internal radio.

The ComTac VI also includes the “Mission Audio Profile,” which offers four listening modes for enhanced auditory awareness: Observation, Patrol, Conversation, and Comfort. The classic mode is designed to mimic the legacy style situational awareness from previous versions.

The headset comes with detachable comms microphone, low battery warning, and a voice-guided configuration menu. The  3M PELTOR COMTAC VI also includes an earplug mode, which maintains situational awareness when used in combination with earplugs. The headset will automatically power off after two hours of inactivity to conserve battery life. It has been tested according to military standards and is compatible with all low impedance and CONSTANT ABLE DISCO32 PTTs.  In addition to these features, the ComTac VI comes with arc rail adapters and gel cups for added comfort. It uses NATO wired U-174 downleads.

With Single Comms variants hear radio audio in both ears, Dual Comms variants can be set for one radio one ear or one radio both ears via the balance options in the menu.

Specifications:

• Performance specifications: Tested in accordance with MIL-STD-810G and MIL-STD-464

• Environmental performance: Tested in accordance with MIL-STD-810G for altitude, high/low temperature, solar radiation, temperature shock, humidity, blowing rain, salt/fog, shock/drop, vibration, sand/dust, fungus, explosive atmosphere, and RF environmental effects on systems

• Electromagnetic interference: Tested in accordance with MIL STD 461G for Department of Defense interface standard requirements

• NIB function: Full duplex communication in frequency bands 864Mhz and 915Mhz, with TDMA protocol and dynamic microphone (MT73, IP68)

• Range: 0-5m (optimal for communication); 5-10m (fade in and fade out)

• Operating temperature: -4°F to 131°F

• Immersion specification: Fresh water: 1 meter for 1 hour; salt water: 2 meters for 30 minutes

• Weight: 379g

• Power: 2xAAA batteries; operating time: Environmental listening: 50 hours; Environmental listening + NIB: 30 hours

• Fail safe: External communications and environmental listening functions are independent for Rx/Tx fail safe; in the event of electronic failure or battery depletion, external device communications will continue to function

Package Contents:

• PELTOR ComTac VI Foldable NIB Headset

• ARC Attachment System

• Gel Cups

• Boom Mic Covers

• AAA Batteries x2

Operation:

• COMTAC VI QUICK REFERENCE GUIDE
